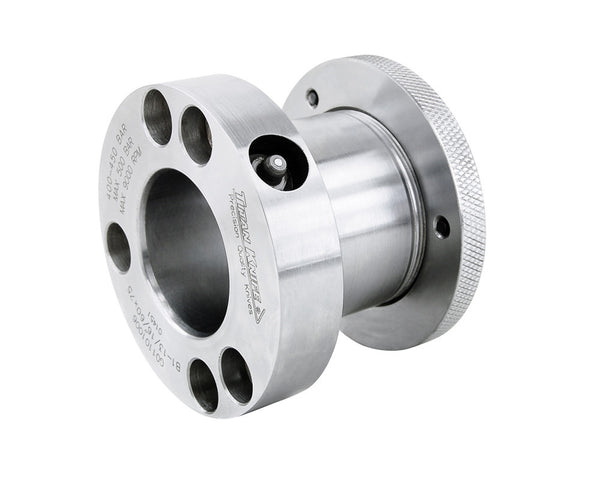

B: 1-13/16" Bore - 60 Shank - 155 Usable - 190 OAL -- Titan Hydro-Lock Sleeve

Sku: B:1-13/16/60-190T
$639.78

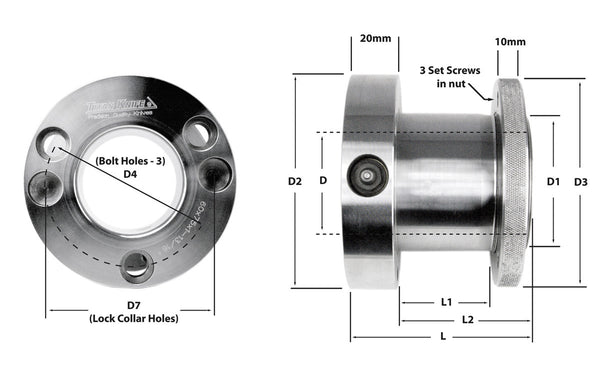

Hydro-Sleeve Style - B
Bore Diameter (D) - 1-13/16"
Shank Diameter (D1) - 60 mm
Flange and Nut Diameter (D2 and D3) - 93 mm and 90 mm
Bolt Circle and Nut Diameter (D4 and D7) - 74 mm
Bolt Couter-Bore Depth (H) - 8.5 mm
Overall Length (L) - 190 mm
Usable Capacity (L1) - 155 mm
Shank Length (L2) - 170 mm
Brand - Titan Knife

High precision, lower cost solution for centering insert cutterheads, spiral heads, and saw blades on production moulders, tenoners, and rip saws. CNC machined from high strength alloy steel for long wear life. Titan sleeves are dimensional matches to the popular ETP ™ brand, and use a welded sleeve design. Call for custom size sleeves made to meet your special requirements.
