Corrugated Straight Bore Moulder and Shaper

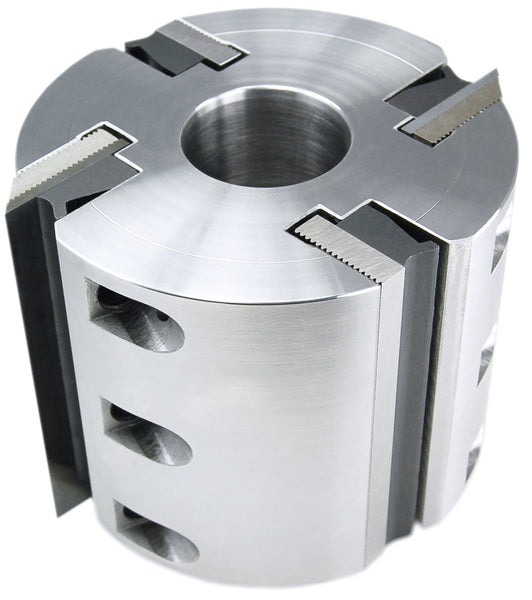

137OD x 100mm Length - Straight Bore - Dual Hook Moulder Cutterhead - 4 Knife

Sku: MH-137-4-100D
$430.75

Outer Diameter - 137 mm (5.4")
Cutting Length - 100 mm (3.94")
Bore - 1-13/16" or 2-1/8" (Choose One)

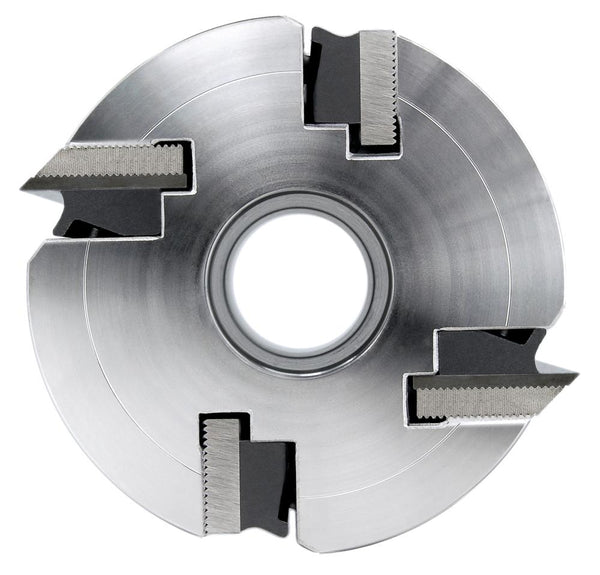

Corrugated Knife Pockets - 4
Cutting Angle (Hook) - 2 Pockets at 12 Degree, 2 Pockets at 20 Degree
Brand - Titan Knife

Weinig, Wadkin, SCMI, IIDA, Leadermac, Woodmizer, Silver, and other Mid-Sized Moulders:
The S137 head line is designed with added features not offered by the German tool makers such as a high alloy strong tool steel body for greater tool life and deeper knife pockets to allow wider and thicker steel to be used for additional resharpenings. Dual Hook cutterheads offer a 12 degree cutting angle for hardwood to reduce raised grain and a 20 degree cutting angle to reduce fuzzing in softwoods. Only 2-knives are required on non-jointed molders; using 4-knives will not improve the surface finish. We offer filler wedges for the empty unused pockets. All heads are precision CNC machined from high strength hardened alloy steel and dynamically balanced (ISO grade quality 1.0) to operate at speeds up to 9,000 rpm. Molder cutter heads are made to exceed the most stringent European OEM standards allowing you to produce smooth material finish with years of trouble free use. Knives and filler wedges sold separately.
